Rope Ladder
Fiber Ropes
Shims

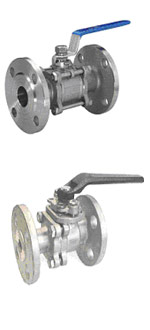

Ball Valves



Design standards : BS-5351/API 6D
Face to face dimension : ANSI B 16.10
Material of construction : CI / CS /SS / FS / BRASS / GUN METAL / BRONZE / NICKEL ALLUMINIUM BRONZE / PHOSPEROUS BRONZE
Size range : 15mm to 400 mm.
Pressure rating : 150 / 300 / 600 / 800 / 900 / 1500 / 2500 class.
Design : One, Two & Three Piece
Type of operation : Manual, Gear, Electric, Pneumatic
Inspection and Test : API 598
ENDS
Screwed to BSP / BSPT / NPT for sizes 15 mm to 50 mm
Socket weld to ANSI B 16.11. for sizes 15 mm to 50 mm
Butt weld to ANSI B16.25 for sizes 15 mm to 400 mm
Flanged to ANSI. DIN or BS standards for sizes 15 mm to 400 mm

* Locking Device available.

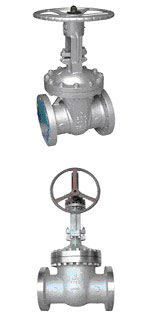

Gate Valves



Design standards : API 600 / API 602 / BS-1414 / IS 14846 / IS 778 / ASME B 16.34
Face to face dimension : ASME B 16.10 / ASME B 16.11 / ASME B 16.25
Material of construction : WCB, WCC, WC1, C5, WC6, WC9, WC12, LCB, LCC, CF8, CF8M, CF3. CF3M, CN7M, ASTM A 890 GR. 4A, ASTM A 890 GR. 6A, CI, FS, BRASS, GUN METAL, BRONZE
Size range : 15mm to 600 mm
Type of Operation : Manual, Gear, Electric, Pneumatic
Pressure rating : 150 / 300 / 600 / 800 / 900 / 1500 / 2500 class. PN 10 / PN 16
Test Standard : API 598
ENDS
Screwed to BSP/BSPT/NPT for sizes 15 mm to 50 mm.
Socket weld to ASME B16.11. for sizes 15 mm to 50 mm.
Butt weld to ASME B 16.25 for sizes 15 mm to 600 mm.
Flanged to ASME B 16.10, DIN, BS


Globe Valves


Design standards : BS-1873 / BS 5352 / IS 778 / ASME B 16.34
Face to face dimension : ASME B 16.10 / BS-2080
Material of construction : CI / CS /SS / FS / BRASS / GUN METAL / BRONZE
Size range : 15mm to 400 mm.
Type of Operation : Manual, Gear, Electric, Pneumatic
Pressure rating : WCB, WCC, WC1, C5, WC6, WC9, WC12, LCB, LCC, CF8, CF8M, CF3. CF3M, CN7M, ASTM A 890 GR. 4A, ASTM A 890 GR. 6A, CI, FS, BRASS, GUN METAL, BRONZE
Test Standard : API 598
ENDS   Screwed to BSP/BSPT/NPT flanged to ANSI, DIN or BS standards. Socket weld to ANSI B 16.11. Buttweld to ANSI B 16.25

Check Valves


Size : NPS 2"-24"
Pressure : Class 150-2500
Material : WCB, WCC, WC1, C5, WC6, WC9, WC12, LCB, LCC, CF8, CF8M, CF3. CF3M, CN7M, ASTM A 890 GR. 4A, ASTM A 890 GR. 6A, CI, FS, BRASS, GUN METAL, BRONZE
Design & Manufacture Std : API 6D, BS 1868, ASME B16.34

Butterfly Valves


Design standards : BS 5155 / API 609 / AWWA C 504
End Construction : Wafer Type, Full Lug Type, Flange Type
Material of construction : CI/CS/Ductile Iron / SS / Bronze / Nickel Aluminium Bronze
Size range : 50 mm to 1000 mm.
Type of operation : Manual, Gear, Electric, Pneumatic
Testing Standard : API 598
Pressure Rating   150/300 class and ND-10, ND-16

Y Type Strainer



Bronze 'Y' Strainers are very commonly used in heating and cooling systems, pipeline carrying water and other liquids and in various machines. Machined seats for perfect seating of Element. NPT or BSP threaded connections. Provided with blow off plug. The plug can be replaced with Ball Value for cleaning & flushing. We are authorized Y strainers manufacturers, liquid strainers manufacturer and provide diverse range of Y type strainers, pipeline strainers and many more.

These flanged 'Y' strainers are most commonly used. These are suitable for water, Oil & Gas. The design is compact and full flow, with large filtration area for low pressure drop and more debris collection. It is provided with drain Plug which can be replaced with Ball valve for frequent blow off. Element is strengthened for rigidity and long life and fitted in machined seats. Flanges provided are as per ANSI B16.5 150#, DIN10 or to Customer's requirement. Suitable for working pressure or up to 250 PSI (16 KG/cm2), Hydraulically tested to 30Kg/cm2. Magnetic insert for Element can be supplied (OPTIONAL).

Strainers with Screwed/S.W. ends in stainless steel CF8, CF8M and Cast Steel Construction. Design rated for up to 1440 PSI for Water, Oil, Gas. Screen Fixed in position on Machined Seats. Investment Cast Body provided with blow Off plug. Plug can be replaced with Ball Valve for frequent cleaning. Available in sizes from ¼" to 3" (6mm to 80mm)

Forged Steel Valves



They are available in Threaded as well as Socket Weld ends. Hard Faced Trim material ensures perfect Sealing and longer life. Gate Valves are available in various materials like Forged Carbon Steel conforming to ASTM-A-105, Forged Alloy Steel like ASTM-A-182-F11, F22 and Forged Stainless Steel like ASTM-A-182 F304, F304L, F316 and F-316L.

Globe Valves are available in various materials like Forged Carbon Steel conforming to ASTM-A-105, Forged Alloy Steel like ASTM-A-182-F11, F22 and Forged Stainless Steel like ASTM-A-182 F304, F304L, F316 and F-316L.

Lift Check Valves are available in various materials like Forged Carbon Steel conforming to ASTM-A-105, Forged Alloy Steel like ASTM-A-182-F11,F22; and Forged Stainless Steel like ASTM-A-182 F304, F304L, F316 and F-316L.

Pressure Seal Valves


Pressure Seal Gate Valve & Globe Valve:

It has been widely utilized in petrochemical industries, fire power plant & use as open & close actuator of passing & blocking medium on steam pipe.
Corrosion Ė resisting performance.
Longer life & lower price.
